Volkswagen
Aerfrigor carries out standard and customized fittings on each Volkswagen commercial vehicle model: Caddy, Transporter and Krafter with dedicated solutions for each model.
Insulated, isothermal and refrigerated setups for every temperature-controlled transport need.
Food transport equipment compliant with HACCP standards, ATP standards for fresh goods (0°C / + 4°C) and frozen foods (-20°C).

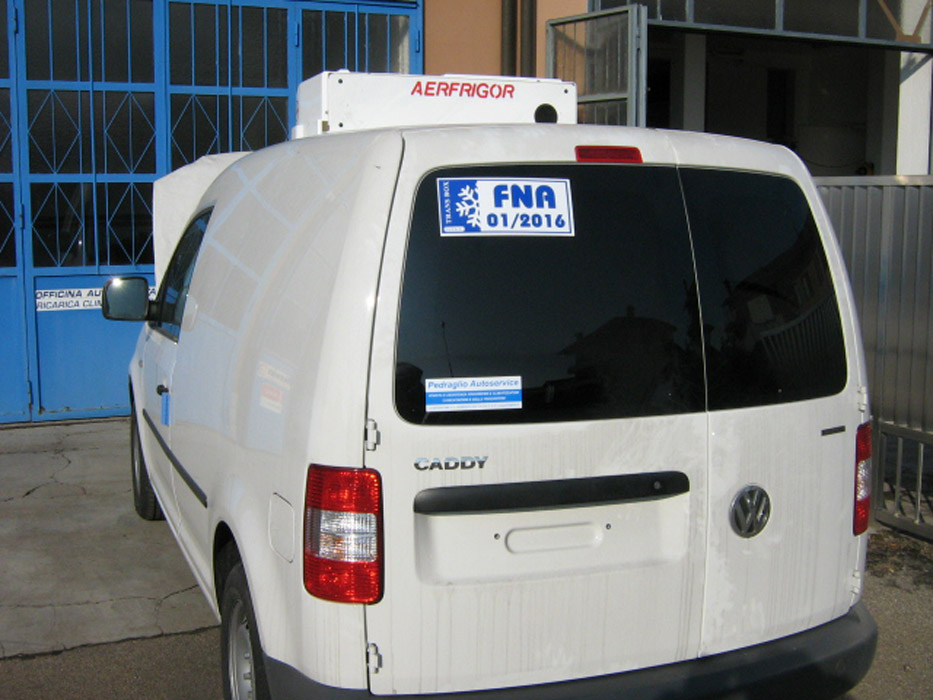

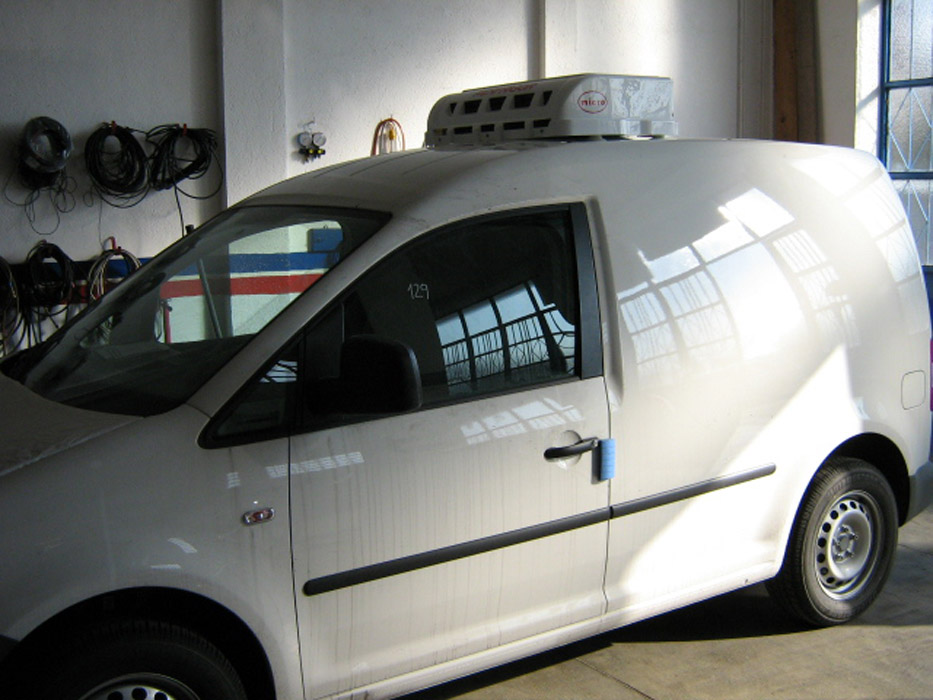

Volkswagen Caddy
Internal measures
| Step | Lenght | Width | Height | |
| Caddy | 2682 | 1781 | 1558 | 1257 |
| Caddy Long overhang | 3002 | 2250 | 1558 | 1257 |
Possible setups

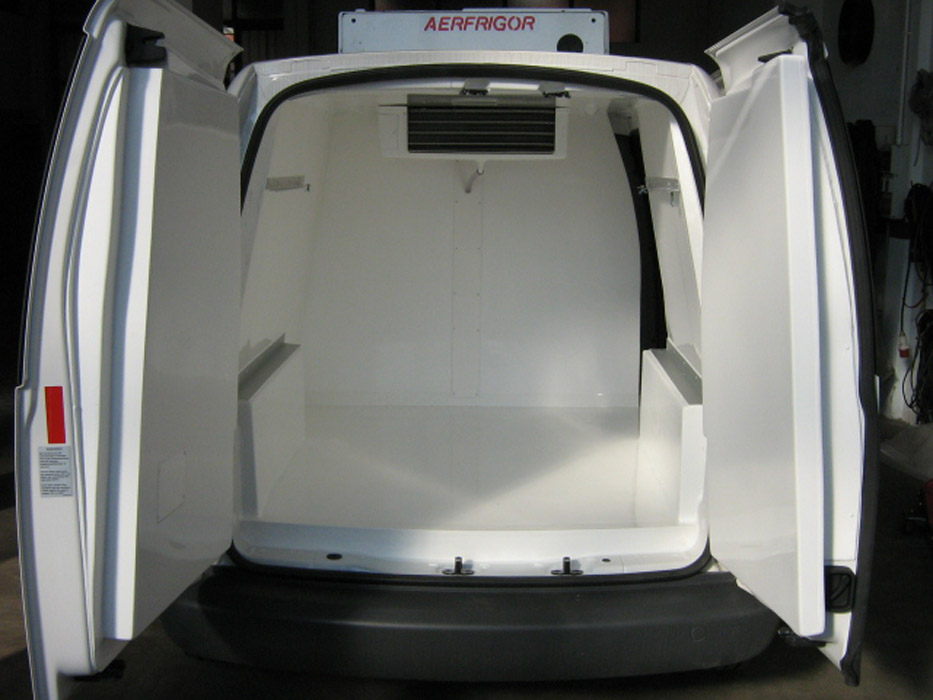

Isothermal and refrigerators
Used for the transport of perishables compliant with ATP standards at a temperature of 0°C.
Coibentazioni aderenti alle pareti interne del veicolo, con poliuretano ad alta densità. Tutti i veicoli possono essere equipaggiati con un unità frigo funzionante durante la marcia e con rete elettrica.
FRCX refrigerators
Used for the transport and distribution of frozen products. The insulation is of a reinforced type, with additional doors and increased thickness; High power refrigeration unit for reaching and maintaining low temperatures.
Plastic covering
Inside the loading compartment for transport with hygienic/sanitary characteristics compliant with HACCP standards. It is a washable, sanitisable and waterproof covering that adheres to the interior of the vehicle without losing internal volume. Example of use: transport of bread.
By applying the SHARK model temperature control unit, the vehicle guarantees the ideal environment for the distribution of medicines.
Refrigerated RRC
Refrigerated with doors and eutectic plates for the distribution of frozen foods. Cells with 3 or 4 doors with on-board or separate refrigeration unit.
Volkswagen Transporter
Internal measures
| Step | Lenght | Width | Height | |
| Transporter Compact | 3200 | 2305 | 1650 | 1353 |
| Transporter Long | 3200 | 2550 | 1650 | 1353 |
| Transporter Long Tetto Alto | 3200 | 2550 | 1650 | 1760 |
Possible setups
Isothermal and refrigerators
Used for the transport of perishables compliant with ATP standards at a temperature of 0°C.
Coibentazioni aderenti alle pareti interne del veicolo, con poliuretano ad alta densità. Tutti i veicoli possono essere equipaggiati con un unità frigo funzionante durante la marcia e con rete elettrica.
FRCX refrigerators
Used for the transport and distribution of frozen products. The insulation is of a reinforced type, with additional doors and increased thickness; High power refrigeration unit for reaching and maintaining low temperatures.
Plastic covering
Inside the loading compartment for transport with hygienic/sanitary characteristics compliant with HACCP standards. It is a washable, sanitisable and waterproof covering that adheres to the interior of the vehicle without losing internal volume. Example of use: transport of bread.
By applying the SHARK model temperature control unit, the vehicle guarantees the ideal environment for the distribution of medicines.
Refrigerated RRC
Refrigerated with doors and eutectic plates for the distribution of frozen foods. Cells with 3 or 4 doors with on-board or separate refrigeration unit.
Volkswagen Krafter
Internal measures
| Step | Lenght | Width | Height | |
| Krafter L1H1 | 3250 | 2600 | 1736 | 1650 |
| Krafter L1H2 | 3250 | 3265 | 1736 | 1940 |
| Krafter L2H1 | 3655 | 2600 | 1736 | 1650 |
| Krafter L2H2 | 3665 | 3265 | 1736 | 1940 |
| Krafter L2H3 | 3665 | 4300 | 1736 | 2140 |
| Krafter L3H2 | 4325 | 3265 | 1736 | 1940 |
| Krafter L3H3 | 4325 | 4300 | 1736 | 2140 |
Possible setups
Isothermal and refrigerators
Used for the transport of perishables compliant with ATP standards at a temperature of 0°C.
Coibentazioni aderenti alle pareti interne del veicolo, con poliuretano ad alta densità. Tutti i veicoli possono essere equipaggiati con un unità frigo funzionante durante la marcia e con rete elettrica.
FRCX refrigerators
Used for the transport and distribution of frozen products. The insulation is of a reinforced type, with additional doors and increased thickness; High power refrigeration unit for reaching and maintaining low temperatures.
Plastic covering
Inside the loading compartment for transport with hygienic/sanitary characteristics compliant with HACCP standards. It is a washable, sanitisable and waterproof covering that adheres to the interior of the vehicle without losing internal volume. Example of use: transport of bread.
By applying the SHARK model temperature control unit, the vehicle guarantees the ideal environment for the distribution of medicines.
Refrigerated RRC
Refrigerated with doors and eutectic plates for the distribution of frozen foods. Cells with 3 or 4 doors with on-board or separate refrigeration unit.
Customized equipment

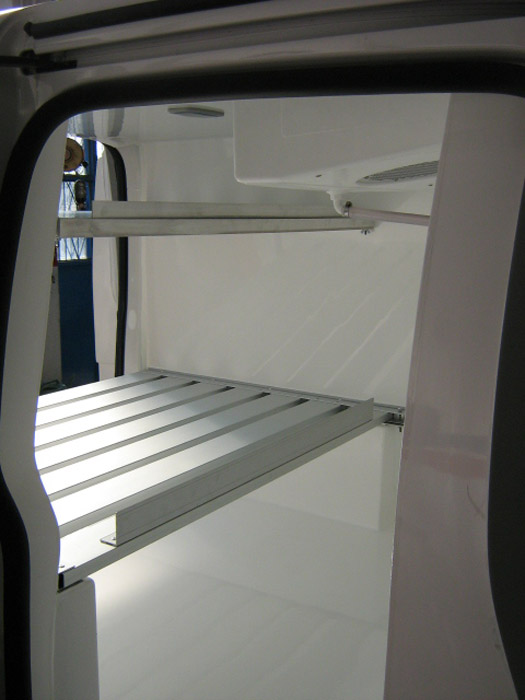

- Fixed, removable or foldable shelves
- Dividers for separating loads
- Multi-temperature controls for differentiated transports
- Systems for hanging meat or fish transport
- Load securing systems
- Protection and reinforcement
- Ventilation devices
